Environment Controlled Broiler Farm

20,000 Birds EC Broiler Poultry Shed

SHED SIZE: 300′ × 40′ • Fully Automatic • Tunnel Ventilated

Our flagship environment-controlled broiler shed is engineered for maximum bird performance — combining precision structural design, complete automation and world-class biosecurity across 12,000 sq.ft. of operational area.

View Project Details Farm Consultation
20K
Birds Capacity
12K
Sq.ft. Covered
6
Exhaust Fans (50″)
100%
Automation
Real Farm Photos

Inside AKBS Poultry Farm

Actual on-ground photographs from our operational EC broiler shed at Kundali, Bamhori, Silwani.

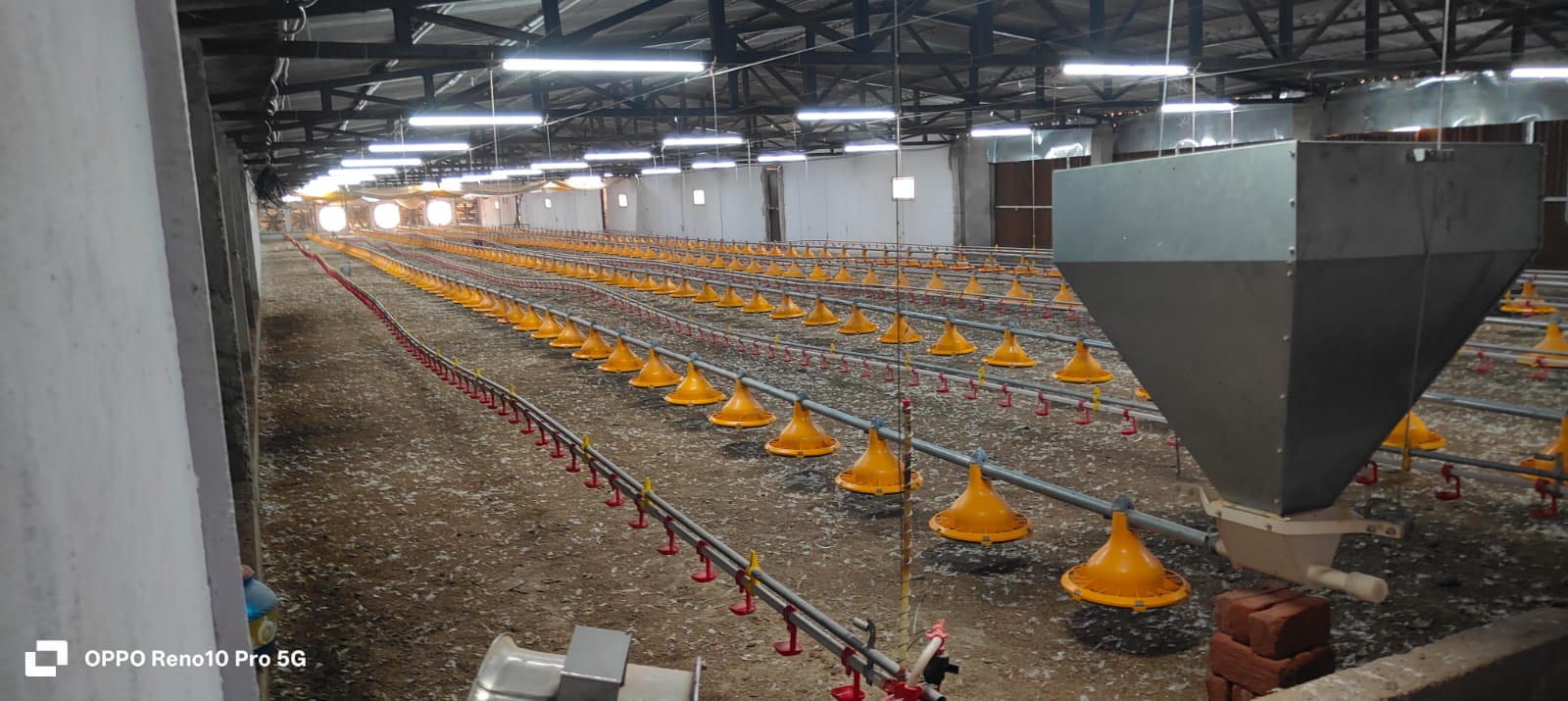

Interior — Feed Line Installation
Feeding System
Interior — Feed Line Installation
Click to enlarge

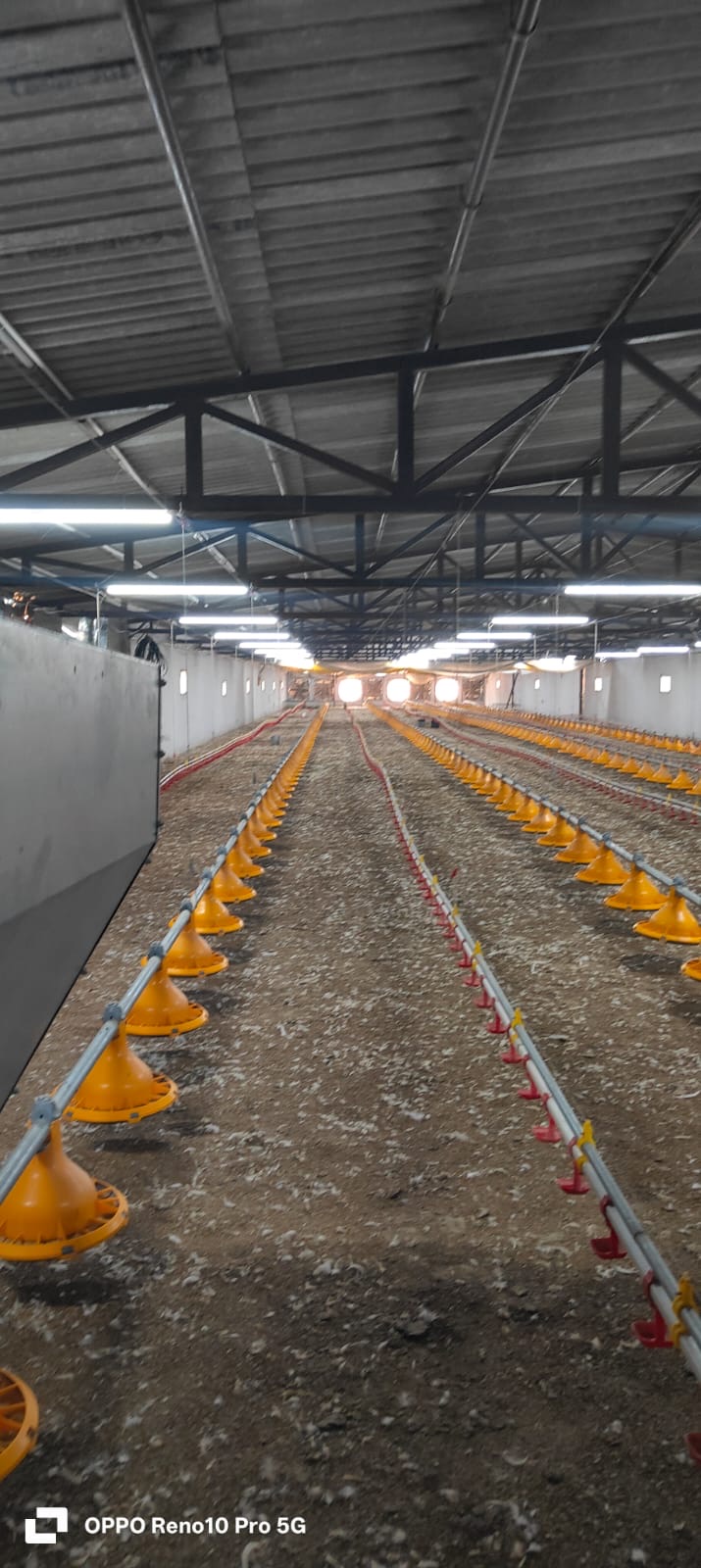

Auto Feeders & Drinker Lines
Automation
Auto Feeders & Drinker Lines
Click to enlarge

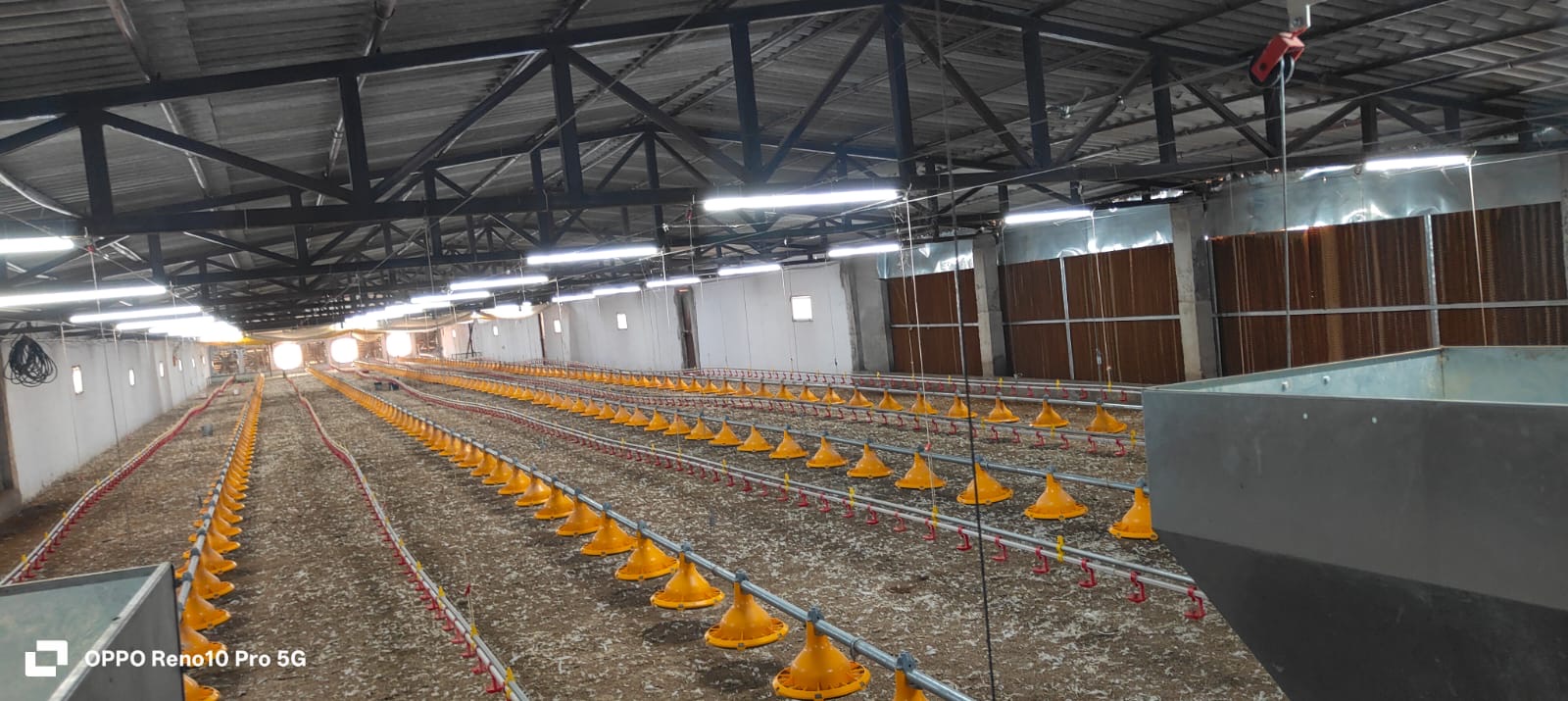

Tunnel Ventilation View
Ventilation
Tunnel Ventilation View
Click to enlarge

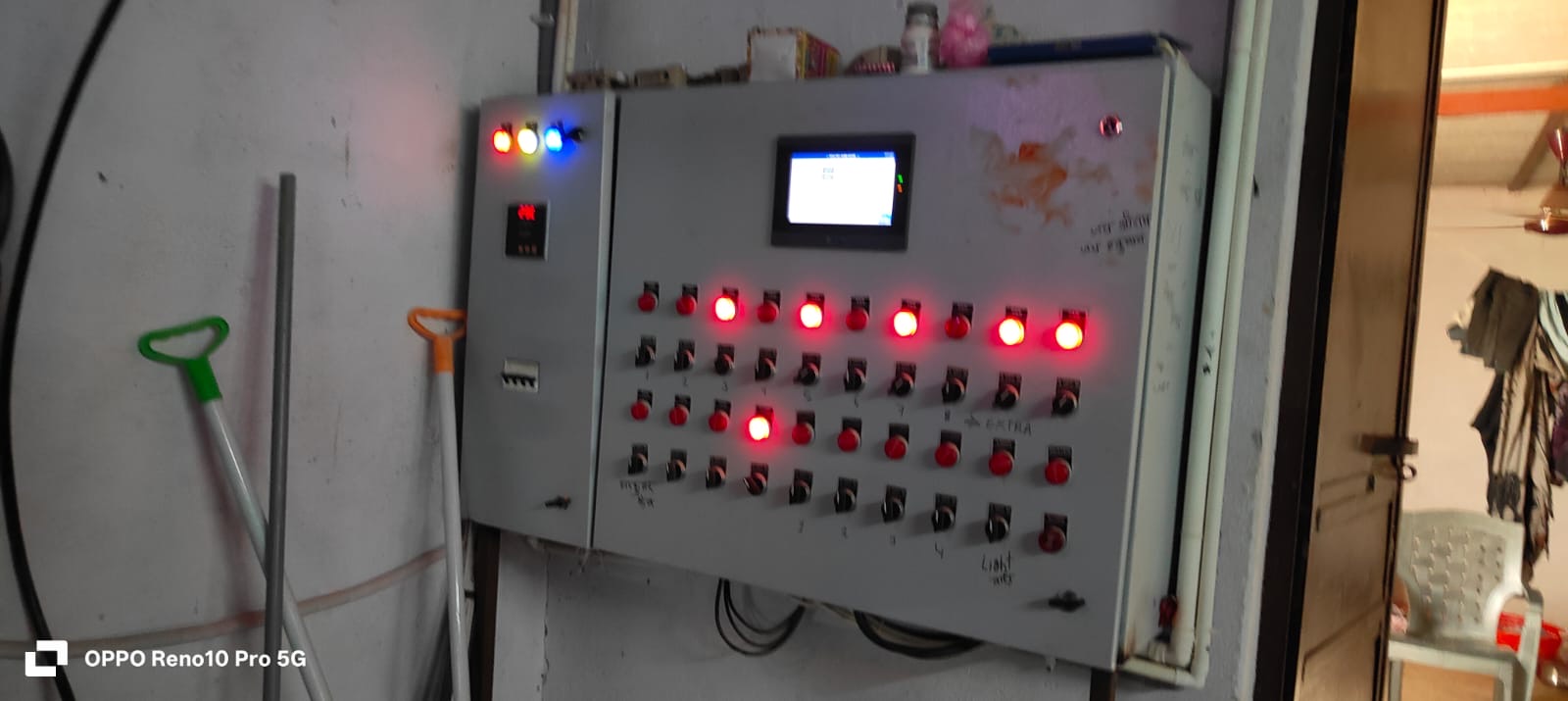

Climate Control Panel
Control System
Climate Control Panel
Click to enlarge
Project Summary

Complete Farm Specifications

Every parameter engineered to deliver the best broiler farming performance.

Project Summary
20,000 Birds EC Broiler Shed
Capacity
20,000 Birds
Shed Size
300 ft (L) × 40 ft (W)
Covered Area
12,000 Sq.ft.
Side Wall Height
8 ft
Ridge Height
14′-6″ ft
Total Height (Approx.)
14′-6″ ft
Ventilation
Tunnel Ventilation (EC)
Cooling System
C – Type Cooling Pad
Exhaust Fans
6 Nos. (50″)
Feed Lines
4 Automatic
Nipple Lines
4 Automatic
Floor
PCC / RCC
Technology
Fully Automatic
Farm Features

Advanced EC Technology

Exhaust Fan Wall

6 heavy-duty 50″ exhaust fans creating powerful tunnel airflow across the length of the shed.

C-Type Cooling Pad

Evaporative cooling pad wall maintains ideal temperature even in peak summer.

Automatic Feeding

4 automatic feed lines deliver measured feed volume without labour, ensuring uniform bird growth.

Nipple Drinking Lines

4 automatic nipple lines provide continuous clean water access at every stage.

LED Lighting

Energy-efficient LED lighting engineered for optimal bird activity, feeding and rest cycles.

Climate Control Panel

Digital control system automates fans, cooling, feed, water, temperature and humidity — 24/7.

Structural Design
Shed Structure Specification
ItemSpecification
Main ColumnISMC 150
Column Spacing20 ft C/C
Truss (Kaichi)16 Nos.
Bottom Chord2L 65 × 65 × 6 mm
Top Chord2L 65 × 65 × 6 mm
Web MembersL 50 × 50 × 5 mm
PurlinZ Purlin (1.6 mm / 2 mm)
Roof Sheet0.50 mm TCT Colour Coated GI Sheet
BracingL 50 × 50 × 5 mm
Sag Rod16 mm Dia (Round Bar)
Investment Breakdown
Cost Estimate (Fixed Asset)
#ParticularsAmount (₹)
1Civil Work₹17,00,000
2Structural Work₹27,00,000
3Roofing₹8,00,000
4EC Equipment₹20,00,000
5Utilities & Infrastructure₹28,00,000
SUB TOTAL₹1,00,00,000
6Contingency & Pre-operative Exp.₹20,00,000
Total Project Cost₹1,20,00,000
*Indicative fixed-asset estimate. Actual cost may vary based on site, material rates and finishings.
Key Highlights

Why Our EC Broiler Farm Wins

Fully Automatic EC Broiler Shed
Tunnel Ventilation with C-Type Pad
High Performance & Uniform Growth
Low FCR & Better Profitability
Lower Mortality & Better Bio-security
Suitable for All Seasons
Long Life, Low Maintenance
Best for Commercial Broiler Farming

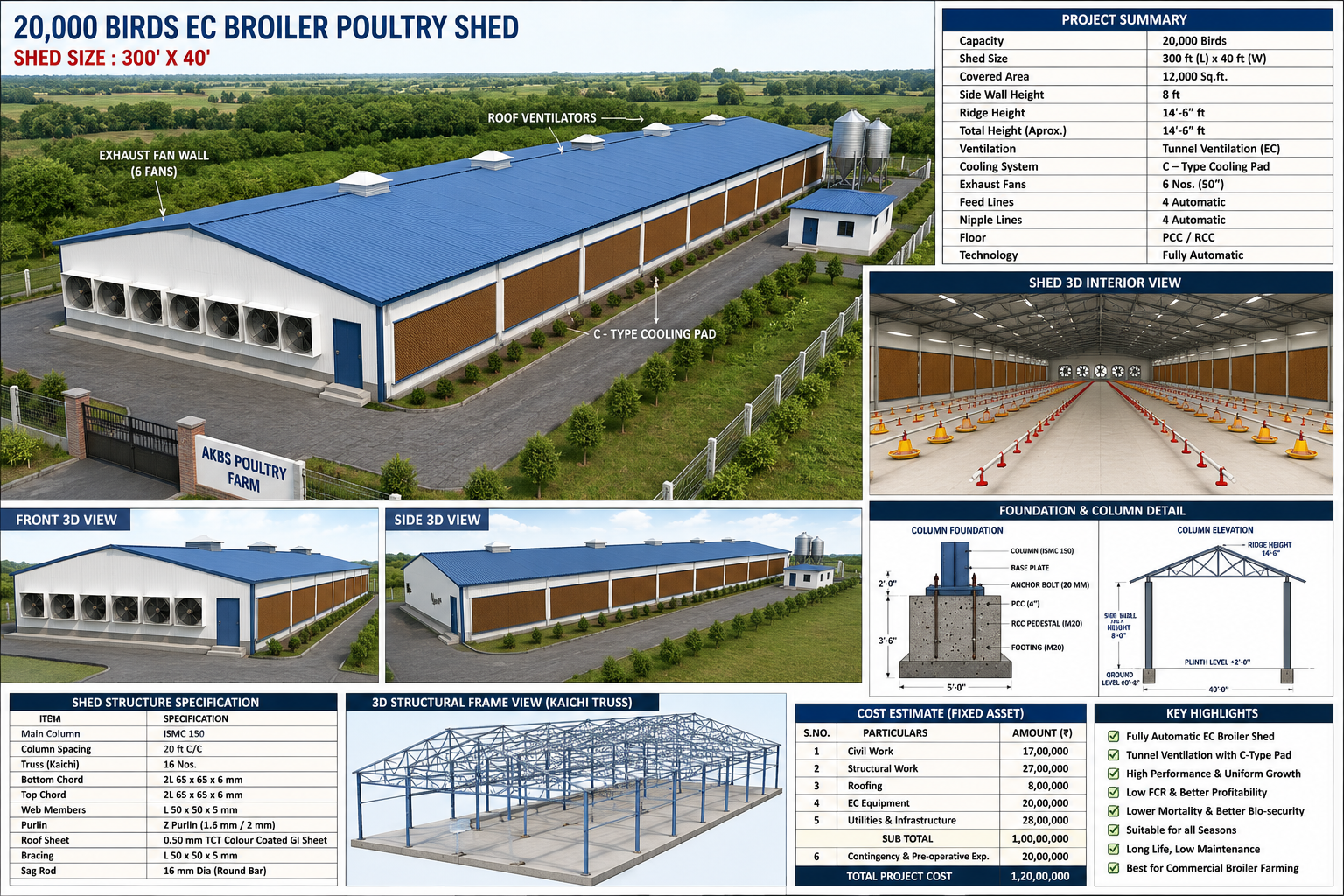

Complete Project Blueprint

Engineering at a Glance

Full technical infographic showing shed views, structure, foundation, cost estimate and key highlights.

20,000 Birds EC Broiler Poultry Shed Complete Blueprint
Full Project Blueprint — 20,000 Birds EC Broiler Poultry Shed
Click to enlarge
Farm Location

AKBS Poultry Farm

Kundali, Bamhori, Tehsil Silwani

District Raisen, Madhya Pradesh (M.P.) — 464226

Visit Farm
Want This Farm Built for You?

Turnkey EC Broiler Sheds • Built by Experts

AKBS delivers complete farm design, construction, automation and commissioning — anywhere in India.
